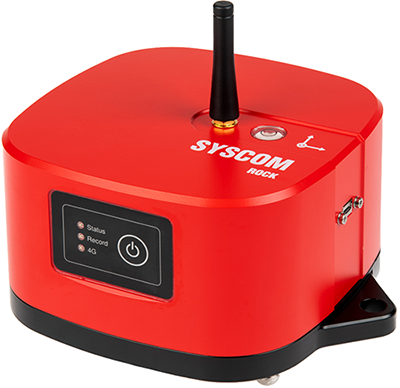

Remote Structural Vibration Monitoring with ROCK
Ideally suited for large-scale vibration monitoring projects and vibration monitoring compliance, ROCK is highly autonomous and quickly installed on site. A cable-free vibration recorder, just switch it on and log into your SCS account to start monitoring from off-site in no time.
The rugged design offers best-in-class IP65 ingress protection for temporary immersion under water, and the system is tailored for harsh outdoor environments. The small footprint allows it to fit in crowded areas where space is of concern.
Do you measure and report on construction-related vibration projects? In these situations, it’s crucial to have reliable equipment designed to survive the elements, provide real-time access to data and events, and simplify reporting. Join us as we discuss this modern solution to help simplify construction vibration monitoring. Register here.
General Applications for ROCK
- Structural Vibration Monitoring
- Construction Vibration Monitoring
- Traffic Vibration Monitoring
- Vibration Monitoring Compliance
What are the Main Features of ROCK?
- NO CABLES REQUIRED!
- Data plan included
- Trigger-based event and/or continuous background recording modes
- Up to 4 s pre-event time @1000 sps and 30 s post event time, selectable related to sampling rate
- ±135 mm | ±5.3 in/s measuring range
- >110 dB dynamic range @1000 sps with 24 bits A/D converters
- 500, 1000, 2000, 4000 Hz sampling rate, selectable
- Best in class DIN45669 Class 1 compliant, 1-350 Hz frequency range
- Smart notifications via text SMS or email with enhanced alarming
- Runs autonomously for 6 months, typical
- Optional integrated solar panel version available for extended run times
- Triaxial (XYZ) velocity sensor, wall or floor mount orientation
- Monitored system state of health (with selectable test-pulse) and system metrics

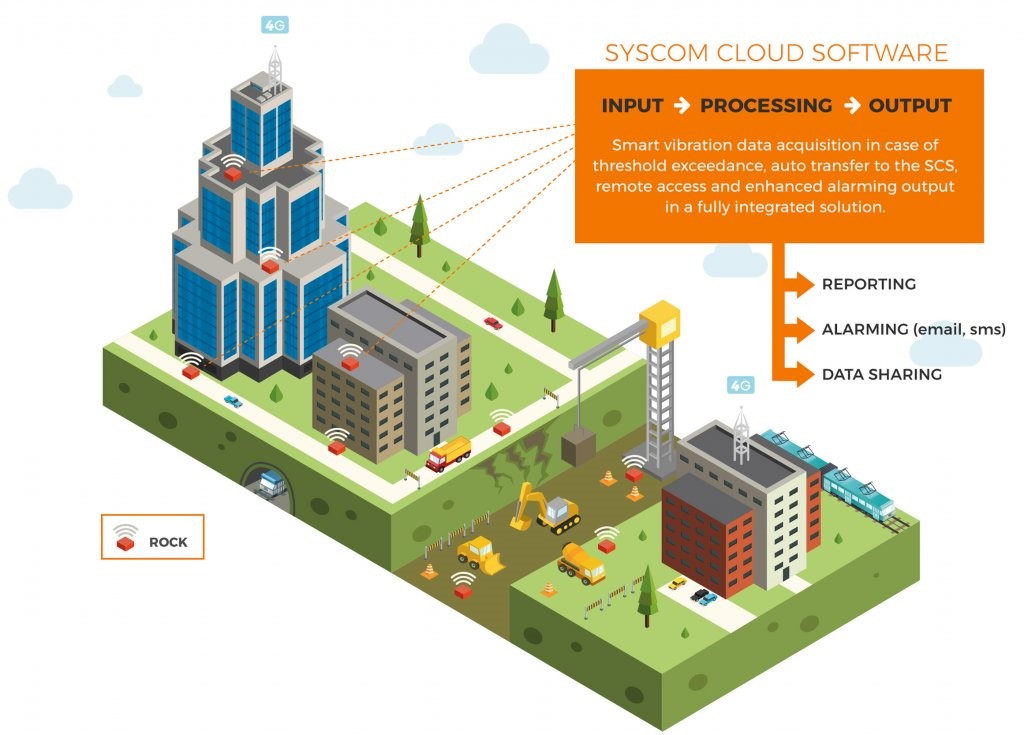

What is the SYSCOM Cloud Software?
SYSCOM Cloud Software (SCS) is cloud-based and provides easy access to your vibration recordings from anywhere. Setup of your personalized SCS account is easy and takes less than a few minutes. Centralize all the information from your monitoring projects and provide an overview of all active ROCK monitoring projects at a glance. Automatic project reporting and comparison with compliance curves are key features of the SCS. Link any ROCK device to your account and start generating results in no time.
SCS Cloud Software Capabilities
- No additional charge – use of SCS included with rental
- Ability to run, control, and monitor ROCK remotely
- Ability to generate and distribute custom reports
- Predefined vibration standards and norms used for testing
- Ability to configure and mimic ROCK settings for other units
- Sync background reports from ROCK when inactive for verification
- User permissions for read or write access
Vibration Standards Supported by ROCK
- RI 8507-OSMRE (USA)
- DIN 4150-3 (GERMANY)
- SN 640312 (SWITZERLAND)
- BS 5228 (UK)
- BS 7385-2 (UK)
- ARRETE de 1994 (FRANCE)
|
- NP 2074 (FRANCE)
- Circulaire du 23/07/1986 (FRANCE)
- UNE 22-381 (SPAIN)
- AS 2187-2 (AUSTRIA)
- PN-B-02170 (POLAND)
|
ROCK Ordering Information
KROCK-H-A-X
Horizontal Mount ROCK kit for ground/floor-mounted installation
Floor Mount ROCK Rental Includes:
ROCK-2003I-H-A-X - Horizontal mount ROCK unit with internal battery
81000631 - Micro USB Cable, 1.8m
87000318 - USB Charger, North American Plug
74710129 - Carrying Case, for up to 3 ROCK Units
Calibration - Documentation
Floor Mount ROCK Options and Accessories:
13100001 - Set of 3 Ground Spikes
13100020 - Mounting Plate
87000321 - Extender Antenna, Remote LTE Cat-M1 Antenna, 2 m Cable
90001052 - Anti-theft Field Cover/Band
SOLAR - Option for ROCK hardware with integrated solar panel (order KROCK-H-A-S to substitute ROCK-2003I-H-A-S unit)
KROCK-V-A-X
Vertical Mount ROCK kit for wall-mounted installation
Wall Mount ROCK Rental Includes:
ROCK-2003I-V-A-X - Vertical mount ROCK unit with internal battery
13100021 - Wall Mounting Plate
81000631 - Micro USB Cable, 1.8m
87000318 - USB Charger, North American Plug
74710129 - Carrying Case, for up to 3 ROCK units
Calibration - Documentation
Wall Mount ROCK Options and Accessories:
87000321 - Extender Antenna, Remote LTE Cat-M1 Antenna, 2m Cable
90001052 - Anti-theft Field Cover/Band
SOLAR - Option for ROCK hardware with integrated solar panel (order KROCK-V-A-S to substitute ROCK-2003I-V-A-S unit)
For more information about renting ROCK, please contact the Rental Team.
