Rotational Sensing and Signal Conditioning Rental
Rotational Speed, Angular and Displacement
LT2 - LaserTach™
- Operates with standard ICP® sensor signal conditioning from 2 mA to 20 mA constant current source
- Easy to install - 20 in (51 cm) range in a standard bolt package offers additional flexibility during installation
- Continuous laser operation for jitter-free RPM measurements
- One pulse per revolution eliminates need to oversample all channels for a high frequency tach signal
- Simplifies cable management for dynamic testing of rotating equipment
- Narrowband optical filter for enhanced outdoor performance
- Full specs from manufacturer
Rental Includes
- LT2 ICP laser tachometer with mounting accessories (bracket, nuts)
- LT-Tape - Retroreflective Tape, 5x 1.5” adhesive pieces

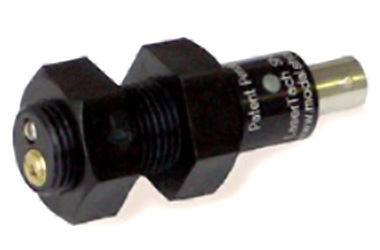

LaserTach™
- Non-contact rotational speed measurements
- Measurements in excess of 30000 RPM
- Usable distance up to 20" away
- 5/8-18 mounting thread
- Operates on 3-20 mA ICP® power with standard BNC connector (non-TTL output)
Rental Includes
- PD-0727 - L bracket for mounting
- LT-Tape - Retroreflective Tape, 5x 1.5” adhesive pieces

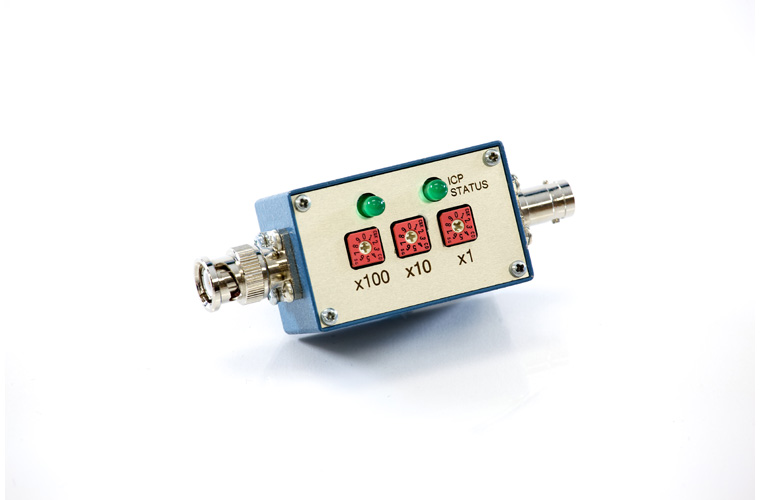

PulseDriver™
- Conditions pulse signals from an optical or magnetic pickup for input into a standard ICP measurement channel
- Eliminates need to oversample all channels due to high frequency tachometer signal
- Can divide frequency unit by up to 255
- Standard BNC connectors
- Full specs from manufacturer

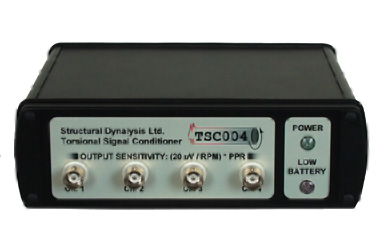

TSC002 and TSC004
Structural Dynalysis Torsional Signal Conditioner (2 or 4 channel options). Conditions output from a shaft encoder, mag pickup or Hall Effect sensor for torsional vibration measurements.
Full specs from manufacturer

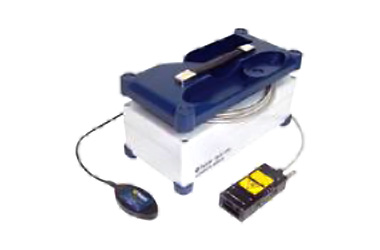

Polytec Rotational Laser Vibrometer RLV-5500
- Precision rpm, angular velocity and angular displacement measurement
- Measures from 0 to 20,000 RPM with 10 kHz bandwidth
- Order filters for run-up measurements
- Standard ±10V BNC signal output
- Full specs from manufacturer
