USB Digital Accelerometer Software

Software Compatibility Guide for the 333D01

With our goal to make your vibration measurement experience as simple as possible, we’ve compiled a list of software to streamline taking data. Below is a list of software options offering features suited to different types of use.

Not sure that your sensor is connected? See our Quick Start Guides to help you get started.

Please email us at sales@modalshop.com to share your software experience or to recommend additions to the list.

Optimized Software (reads Digiducer Calibration Data)

Optimized for Use with 333D01

Optimized Software automatically accesses the sensor's internal calibration data via the USB interface and provides calibrated values in engineering units.

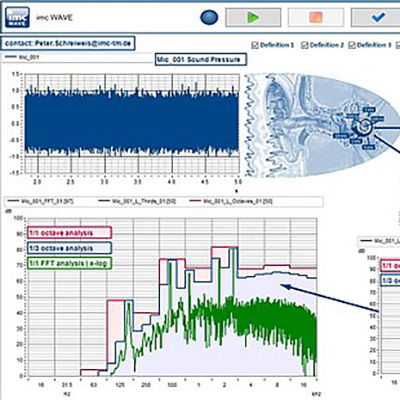

imc WAVE by imc Test & Measurement GmbH [Windows] [Demo] An inexpensive and powerful introduction system to noise and vibration analysis. For technicians and engineers, the imc WAVE starter packages offer a user-friendly introduction to noise and vibration analysis. Users can thus use the numerous ready-to-use functions contained in imc WAVE for the evaluation of sound levels and sound power levels as well as for vibration analysis on machines and thus take their first steps into the world of NVH analysis. Visit the imc WAVE Software page for the 30-day free evaluation and full version.
	Sound level measurement according to IEC 61672:2003 Vibration level and Vibration evaluation measurements 1/3 octave analysis according to DIN EN 61260 Frequency and time domain analysis FFT analysis Support for one or two ICP (IEPE) accelerometer and/or measurement microphone

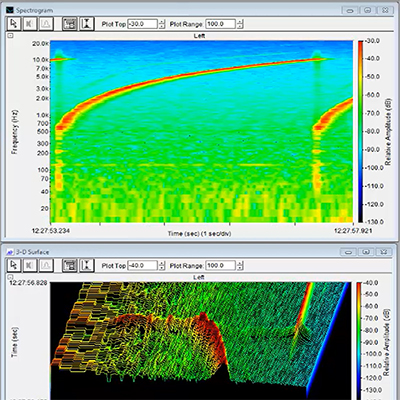

SpectraPLUS-SC by Pioneer Hill Software LLC [Windows] [Trial] Visit spectraplus.com to learn more.
	Recording Full-featured dual channel signal generator Up to 24-bit precision Real-time frequency analysis Velocity and displacement measurements FFT analysis of live input Digital filtering, distortion analysis, transfer functions Data logging Order analysis Record, playback, and post-process ".wav" files Displays: time series, spectrum, spectrogram, 3-D surface, phase Advanced programming API Free 30-day trial
SpectraPLUS-RT by Pioneer Hill Software LLC [Windows] [Trial] A simplified and lower cost spectrum analyzer. Visit spectraplus.com to learn more.
	Features: Record and playback from .WAV files Support for embedded calibration data Signal generator Single channel operations: Up to 24-bit precision Real-time mode Spectrum Narrowband FFT 1/1 and 1/3 octave scaling Dual channel operations: 2-channel analysis Free 30-day trial

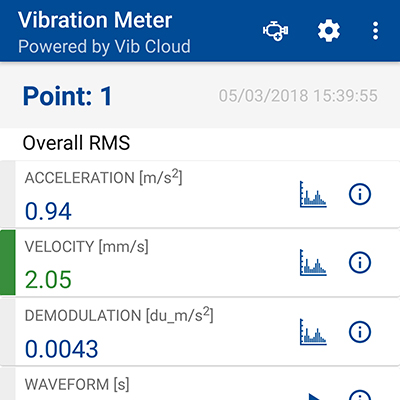

VibeCheck Vibration Meter – Portable Vibration Monitoring and Analysis Solution by iTnnovate [Android and iOS] Vibration data analysis with cloud-based web application. Visit The App Store or Google Play to learn more.
	Features: High sampling rate, filtering, windowing, averaging Waveform recording FFT Spectra: Acceleration, Velocity, Demodulation Frequency range - up to 20 kHz High resolution spectra - up to 12800 lines RMS alarms set up as per ISO 10816 Equipment setup Criticality and status Route data collection Instant alarms and limits Dashboard Analysis Interactive map Live reporting Secure access
SignalScope Pro 2020 for iOS – Faber Acoustical [iOS] Visit faberacoustical.com or The App Store to learn more.
	Recording Stores acquired data in .csv, .txt, or .mat formats Can store analyzer display images as .pdf or photo image Data can be accessed with standard browsers over the internet Real-time analysis Frequency and time domain Calculates velocity Two channels supported All sample rates and bit resolutions supported Allows for different engineering units Sensitivity calibration for all input channels Basic, Advanced, and Pro tool-sets available

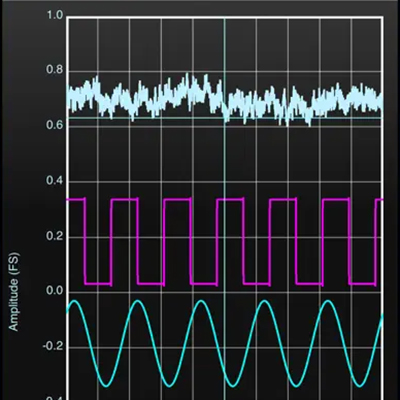

SignalScope X for iOS – Faber Acoustical [iOS] Visit faberacoustical.com or The App Store to learn more.
	Free Oscilloscope feature Sensitivity recognition of Digiducer Save and share capability, including CSV exports Affordable subscriptions offer many upgrades Basic Tool Set FFT analyzer 2D real-time spectrogram analyzer XY plotter Advanced Tool Set 3D real-time spectrogram analyzer Octave-band analyzer Level meter Data recorder Stereo signal generator Pro Tool Set Dual-channel system analyzer Room acoustics analyzer MultiTool data monitoring/management

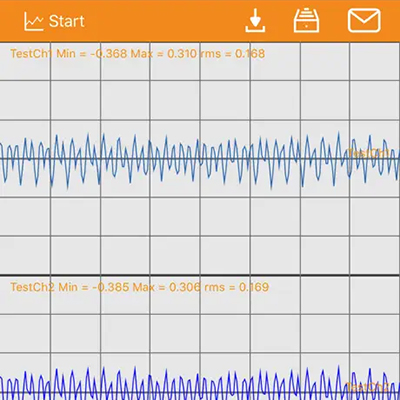

VibroChecker Pro by Ace Controls [iOS] A simplified and lower cost spectrum analyzer. Visit acecontrols.com or The App Store to learn more.
	Features: Variable measureing time Variable start delay of 0-20 seconds Triggering Selectable scanning rate (10 Hz to 100 Hz for internal sensor, 1 kHz to 16 kHz for external Digiducer) Adjustable autorepeat function Storage/transmission via email as .CSV file Need Help Getting Started? (Video)[English] Need Help Getting Started? (Video)[German]

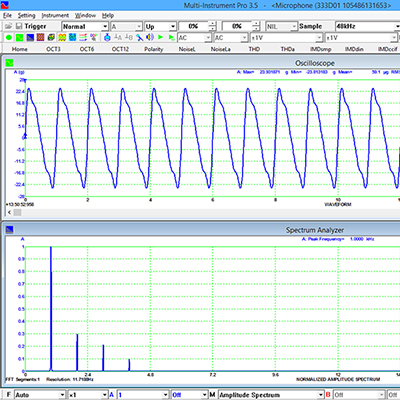

Multi-Instrument by Virtins Technology [Windows ][Trial] Multi-Instrument is a powerful multi-function virtual instrument software. It supports a variety of hardware ranging from sound cards which are available in almost all computers to proprietary ADC and DAC hardware such as NI DAQmx cards, VT DSOs, VT RTAs and so on. Visit virtins.com to learn more.
	Spectrum analyzer Real-time analyzer Harmonics analyzer Transfer function measurement Impulse response Calibration supported Reads calibration data from sensor Individual channel calibration Data logger Multiple supported languages Fully-functional, FREE 21-day Trial

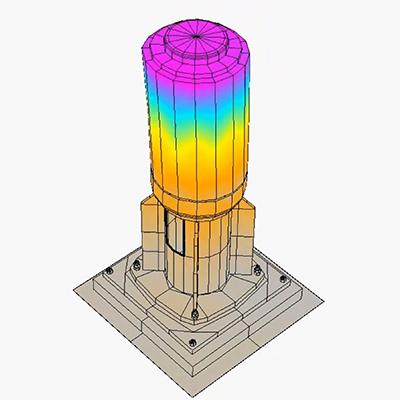

ME’Scope by Vibrant Technology [Windows] Visit vibetech.com to learn more. Trial versions are available upon request.
	Real-time monitoring Time and frequency domain Allows for different engineering units Selectable FFT block size Selectable windowing Calibration supported Reads calibration data from sensor Individual channel calibration
Accelerometer Tool – Chistian Zeitnitz [Windows][Demo] A simple to use Windows application. This is a shareware application which allows for a 10 minute evaluation before having to restart the application. A license is available for unlimited usage. Visit zeitnitz.eu to learn more.
	Automatic sensitivity Supports reading calibrated sensitivity from sensor and applying it to the data displays Recording Stores acquired data in .WAV or .CSV with embedded sensitivity Real-time analysis Frequency and time domain Two channels supported Allows for g's or m/s2 engineering units Repeatable 10-minute evaluation period

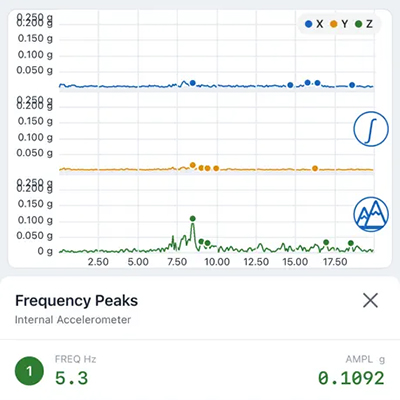

Vibration – Diffraction Limited Design LLC [iOS] Visit dld-llc.com or The App Storeto learn more.
	Features: Variable bit resolution (256 – 4096 samples) Compute RMS and peak levels for multiple channels Capture screenshots Calculates velocity and displacement Real-time analysis Frequency and time domain Multiple channels supported Linear-Linear, Log-Log, Log-Linear, and Linear-Log Sensitivity calibration for all input channels This application can be controlled by an Apple Watch. It supports lower sampling rates by performing additional signal processing.
iVibraMeter by Motionics LLC [iOS] Visit motionics.com or The App Store to learn more.
	Features: Real-time overall RMS Vibration signal spectrum/waveform Vibration in velocity (ips or mm/s) or acceleration (G's) Selectable industrial severity standards Customizable alarm and danger values Signal averaging option Accelerometer calibration option Generate report with machine settings Email PDF report

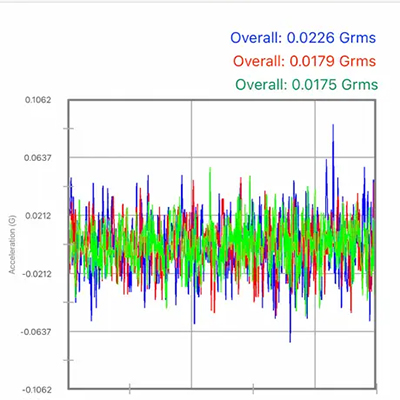

Multisens-1234 by SensOS [Android, iOS, iPadOS] The app is designed to test drive different Machine Condition Monitoring sensors, connect to them and plot the Time Waveform graph and the Vibration Spectrum in Acceleration, dB and Velocity. The app will auto-calibrate to each sensor and provides data acquisition with different sampling rates and number of samples. Visit The App Store (free for iOS/iPadOS) or http://pdmsensors.com/ to purchase for Android.
	Free for iOS/iPadOS Compare different Sensor Technologies TWF Acceleration Spectrum GRMS and GdB Velocity Spectrum ips and mm/s

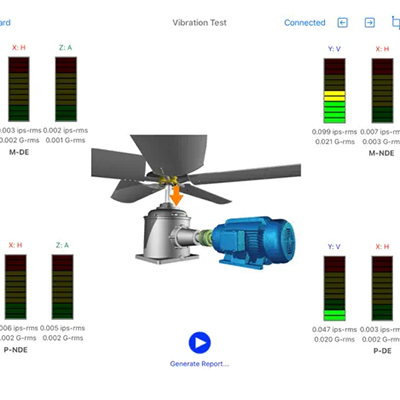

Multisens-3934 by SensOS [iPadOS] The app is designed to connect to a variety of wired and wireless commercial vibration sensors and perform different types of vibration analysis, Data and Reports can be stored on the device or in the cloud for further analysis. Visit The App Store (free to download) or a licensed version can be purchased at http://pdmsensors.com/.
	Time Waveform and Spectrum Plots (Including Cursors for high peaks, CPM and Sidebands) Spectrum Difference Analysis 3D Vibration Analysis Orbit Plots Transmissibility Analysis Polar Time-Waveform Phase & Amplitude Spectral Analysis Cross-Spectrum Phase Analysis Vibration Logger Bump Test Analysis (System Response Spectrum) Live Waterfall Spectrum Analysis Machine Certification
Vibra Test Pro by Motionics LLC [iOS] A tool for evaluating vibration severity of rotating machines from 120 to 15,000 RPM based on the ISO standard 10816-3. Visit motionics.com or The App Store to learn more.
	Features: Audio and Manual input option Accurate vibration velocity RMS computation Interactive ISO 10816 vibration severity table Metric and Imperial units option Machine type and support type selections Enlarged severity bar with 4 color zones for better view Custom standard available with user defined severity thresholds Test information input including test date, machine ID, machine image Screenshot of testing page saved in the device photo library Email testing page
TwistedWave Recorder by TwistedWave [Mac/iOS] Visit The App Store to learn more.
	Recording Easy record feature Sample rates up to 96 kHz Mastering Equalization, compression, limiting, etc... Batch processing

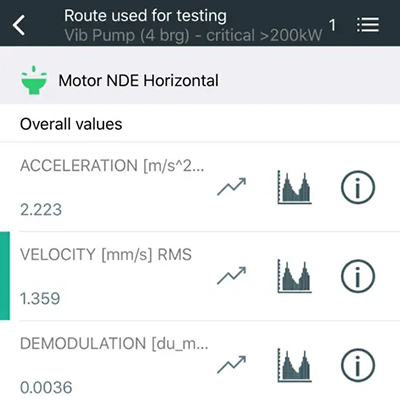

VibCloud by iTnnovate [Android and iOS] Comprehensive fully configurable route-based vibration measurement and analysis package. Includes mobile data collection app and full in the field and on the cloud analysis and management capabilities. Equipment is organized in hierarchy and has custom RMS and bend alarms, trends, single, multi spectra, multi point and waterfall plots and time waveform analysis options. Has analysis assistant and fault frequency setup capabilities. Incudes condition assessment and full reporting functionality. Visit The App Store or Google Play Store to download, or the iTnnovate website to learn more.
	Android or iOS mobile app Instant vibration measurement On-the-spot vibration alarms FFT spectra analysis Asset register & document library Database structure with copy and paste functionality In-depth vibration analysis & condition assessment Build, schedule and manage routes Advanced reporting Analysis assistant, band alarms and fault frequency setup

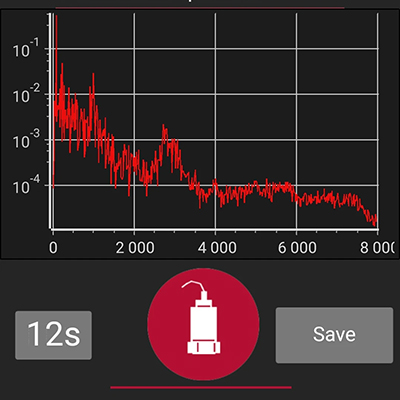

DygiVib by DYNAE [Android and iOS] Test vibration levels of your rotating machinery with the Digiducer sensor. Visit The App Store or Google Play Store to download, or the DYNAE website to learn more.
	DygiVib processes a predefined record duration in real time and provides the following indicators: Velocity overall level RMS (from 2 Hz, 5 Hz or 10 Hz to 1000 Hz) Acceleration overall level RMS ( 0 to 8 kHz) Acceleration overall peak to peak ( 0 to 8 kHz) Displacement overall level Velocity spectrum 0 to 1000 Hz Acceleration spectrum 0 to 8000 Hz Color indicators based on ISO-10816 class of your equipment levels Data export Scalars indicators can be exported in CSV file Raw time signal can be exported (as DDA file format) and post processed by the DynamX® DYNAE software to help diagnose vibration causes.

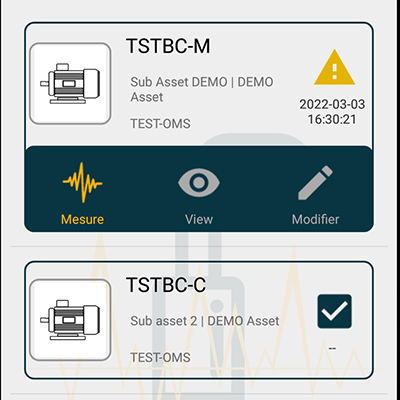

MobiVib [Android] MobiVib is a light and powerful mobile application compatible with the VIBLINE and I-SENSE platforms that allows remote monitoring of your assets. The VIBLINE platform is dedicated to vibration monitoring and analysis. The I-SENSE platform is an upgraded version of the VIBLINE platform and which allows even more features for monitoring data reported from the MobiVib application, data from ViBox online monitoring systems, as well as other types of sensors. The mobile application allows the visualization of data in addition to the notification of alarms and alerts according to the ISO 10816 standard. MobiVib allows vibration measurement using a DIGIDUCER 333D01 USB digital sensor. Visit Google Play Store to download, or the OCP Maintenance Solutions website to learn more.
	Android mobile app Vibration Measurement Visualization of waveform signal in real-time Spectral Analysis: Acceleration spectrum [0 – 8,000 Hz] Velocity Spectrum [0 – 1,000 Hz] List of 10 highest peaks Vibration analysis performed on the mobile device Using ISO 10816 compliant standard in accordance with your asset group specified on I-SENSE® Platform Velocity (NGV), Acceleration (NGA) Overall RMS levels and Acceleration overall peak to peak (Pk-Pk) NGV: 2 Hz or 5 Hz or 10 Hz to 1,000 Hz band based on ISO 10816 NGA: 0 Hz to 8,000 Hz Pk-Pk: Sampling rate 16,000 S/s Recording Supports dual band acquisition and switches to the best channel to fit the time signal based on vibrations levels. Cloud Storage: Synchronize data with I-SENSE® Platform

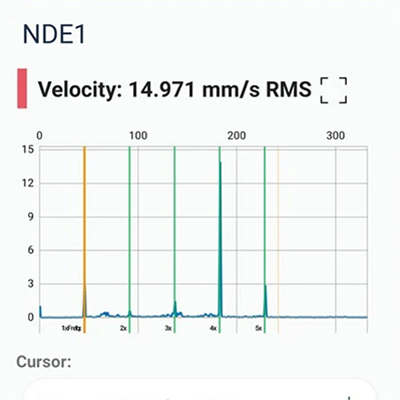

VibAnalyse [Android] One of the most comprehensive field vibration analyzer with a cloud data backup. Leverages the processing power and portability of a modern mobile devices such as mobile phones and tablets, precision of a digital accelerometers, and convenience of connectivity of the cloud. Visit Google Play Store to download, or the iTnnovate website to learn more.
	Create machines on the go (asset register) Record machine details (barcode, GPS, nameplate, photo, 1xFreq) Collect vibration data (acceleration, velocity, demodulation, displacement, and time waveform) Setup measurement parameters on the go (customizable settings for signal processing) Fast data collection (fully optimized algorithms and using full processor potential) In addition to vibration collect text, numeric values, and images Add comments to every measurement point Analysis performed on the mobile device Overall RMS ISO 10816 standard for velocity alarms FFT spectra Cursor functionality Play back acceleration recording Automatically detects and displays 10 highest spectral peaks Record equipment condition, findings and recommendations Generate PDF report from the mobile device
SignalScope Pro 3.0 for Mac OS – Faber Acoustical [Mac OS] Visit faberacoustical.com or The App Store to learn more.
	Real-time data acquisition Time and frequency domain Multiple block sizes, windowing options available Support for engineering units Export data to multiple file formats for use in other programs Calibration supported Assign labels, units, and sensitivities to individual input and output channels
TwistedWave Online by TwistedWave This software allows recording right from the browser. Visit twistedwave.com to learn more.
	Features: Record and edit any audio file. Embedded calibration data in WAV file. Audio stored on server for later use Saves edit history

Compatible with 333D01

Software can gather data with the sensor, may or may not have some form of manual calibration, and can be either a recorder or spectrum plotter.

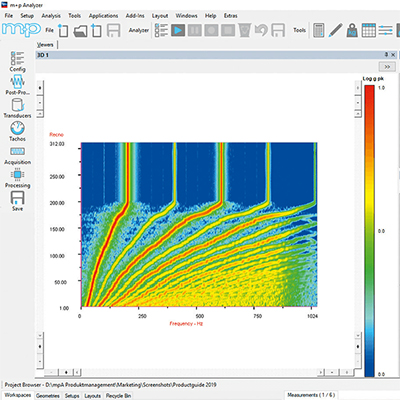

m+p Analyzer [Windows] Visit mpihome.com to learn more.
	Real-time monitoring Time and frequency domain Windows audio interface Data recording Calibration Individual channel calibration with manually entered units

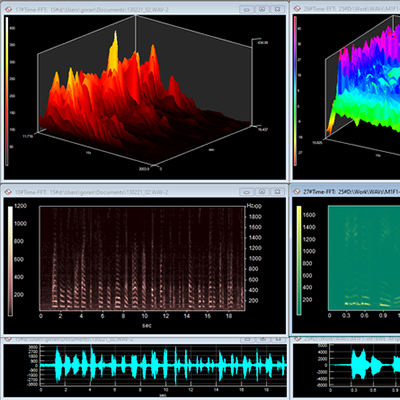

Sigview by SignalLab [Windows] [Trial] Visit sigview.com to learn more.
	Recording Windows audio interface ASIO Supports all sample rates Compatible with custom sample rates Real-time monitoring Time and frequency Frequency analysis Custom block size supported, extends past typical 65536 limit Multiple windows Can analyze specific section of recorded data Calibration supported One channel calibration capabilities Channel-to-channel scale factor to calibrate the second channel relative to the first Fully-featured, FREE 21-day trial
Soundcard Oscilloscope – Chistian Zeitnitz [Windows] [Demo] Visit zeitnitz.de to learn more.
	Recording Single channel Windows audio (DirectSound) only Supports all 333D01 sample rates Real-time capture Real-time analysis Time and frequency Two channels supported Full-featured demo
Visual Analyser by Sillanum Soft [Windows] [Free] Visit sillanumsoft.org to learn more.
	Recording Supports dual channel Windows audio (DirectSound) only Supports all 333D01 sample rates Real-time capture Cannot save data Calibration Can manually calibrate either the scope view OR the frequency spectrum view, not both Real-time frequency analysis Multiple power of two block sizes up to 65536 Multiple windowing functions Averaging Peak hold Pointer with data cursor Logarithmic and linear frequency axis Free software
WavePad Sound Editor by NCH Software [Windows] [Free] Visit nch.com to learn more.
	Recording Supports dual channel Windows audio interface Supports all sample rates ASIO Support Setting the ASIO sample rate is currently unsupported Import Existing Files .WAV file support Post-processing frequency analysis Can analyze specific portion of data FFT settings such as window and block size cannot be changed “Peak Finder” identifies peaks Linear / pseudo logarithmic frequency scale: major increments of 1000 - minor of 100 Calibration supported None Free software (limited by licensing)

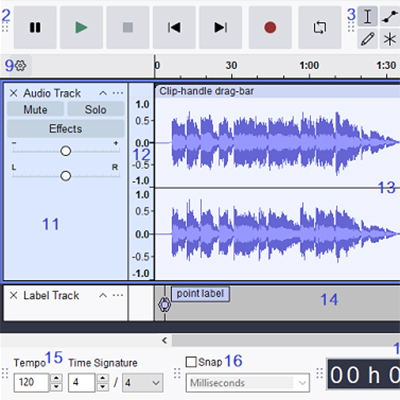

Audacity by the Audacity Team [Windows] [Free] Visit audacity.sourceforge.net to learn more.
	Recording Supports dual channel Windows audio interface Supports all sample rates ASIO is not supported due to Steinberg and Open Source licensing Import existing files .WAV file support Post-processing frequency analysis Block sizes from 128 to 65536 Multiple windows Log or linear frequency Can analyze specific portions of data Apply several filters to data Calibration supported None Free software
TwistedWave Recorder by TwistedWave [Mac/iOS] Vist The App Store to learn more.
	Recording Easy record feature Sample rrates up to 96 kHz Mastering Equalization, compression, limiting, etc... Batch processing Need Help Getting Started?
Spectrum Analyser by Keuwlsoft [Android] [Free] Visit the Google Play Store to learn more.
	Real-time frequency analysis 64 up to 8192 frequency divisions 1 kHz to 22 kHz spectrum range FFT analysis of live input FFT windowing (Barrett, Blackman, Flat Top, Hanning, etc...) Auto-scale or pinch to zoom, drag to pan. Peak frequency detection Save CSV data files Averaging min and max Free download
Spectrum Analyzer by Raspberrywood [Android] [Free] Visit the Google Play Store to learn more.
	Free Version Features: 44100 Hz sampling rate 8192 samples per spectrum ~5.4 Hz resolution per point Peak detection of entire spectrum and local window Take screenshots *Added Features with Premium* Adjustable sample rate from 8000 Hz to 48000 Hz Adjustable size of FFT up to 100000 samples Autoscale

Engineering Development Environments

The following environments are commonly used in the engineering community to develop vibration analysis applications. Any general purpose programming environment such as Visual Studio will work with the 333D01 as well.

DASYLab® Data Acquisition (DAQ) DASYLab data acquisition (DAQ) software provides tools and functions to quickly and easily develop complex applications without programming. The software offers real-time analysis, control, and graphics tools for creating custom graphical user interfaces (GUIs). Visit mccdaq.com to learn more.
MATLAB® by MathWorks® Visit mathworks.com to learn more.
	Measurement Interfaces Audio recorder ASIO control DSP Toolbox ASIO Examples
NI LabVIEW™ by National Instruments™ Visit ni.com to learn more.
	Graphical programming environment Can use Sound Capture VI Compatible with third-party components
NI LabWindows™/CVI by National Instruments™ Visit ni.com to learn more.
	C programming environment Supports most sound card recorder interfaces
