Modal Shakers

Lightweight Exciters for Experimental Modal Testing

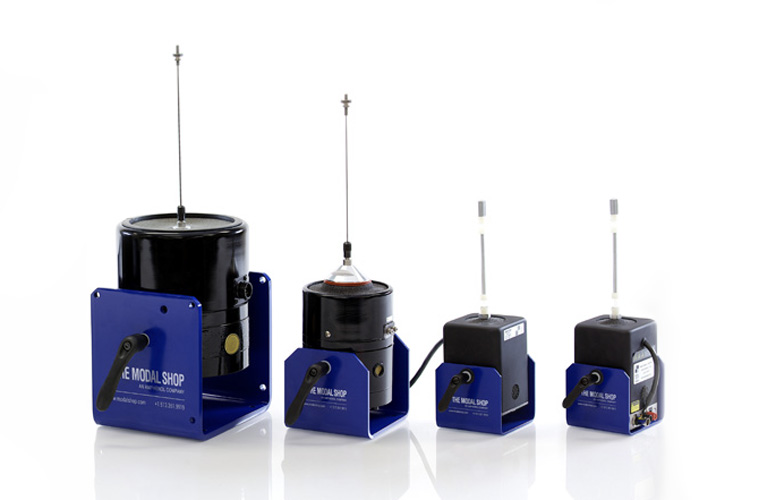

stp modal shaker family product 1Modal shakers and modal shaker kits from The Modal Shop are used in test laboratories around the globe. Offering a complete line of shakers – from miniature vibration shakers to complete modal shaker systems – these solutions are designed for a wide range of modal analysis applications. System force ratings range from 2 lbf (9 N) to 60 lbf (267 N).

Miniature inertial shakers facilitate testing in hard to reach locations. Miniature vibration shakers deliver a high degree of flexibility when testing. The SmartShaker™ Series offers a built-in power amplifier, creating an all-in-one shaker with plug-and-play capabilities for both modal and vibration tests. Modal shakers are designed with a through-hole armature to simplify a common testing challenge: stinger setup and alignment. These shakers are used in applications from component testing to aerospace ground vibration tests.

Click below to learn more about modal shakers and their various available kit configurations.

Shaker ModelMax Force
lbf (N) pk
Max Frequency
Hz [2]
Stroke
In (mm) pk‑pk
Weight
lb (kg)
Type
2002E2 (9)3 0000.35 (8.9)0.56 (0.25)Inertial
SmartShaker™ K2004E01 [1]4.5 (20)11 0000.2 (5)7 (3)Mini with Integrated Amp
2004E [1]4.5 (20)11 0000.2 (5)6 (3)Mini
SmartShaker™ K2007E01 [1]7 (31)9 0000.5 (13)7 (3)Mini with Integrated Amp
2007E [1]7 (31)9 0000.5 (13)6 (3)Mini
2025E13 (58)9 0000.75 (19)13 (6)Modal
2060E60 (267)6 0001.4 (36)37 (17)Modal

[1] Models 2004E, 2007E, and SmartShaker™ have no through-hole armature
[2] Load dependent

If you are interested in performing both modal analysis and vibration testing – we offer shakers with capabilities for both. In addition to our miniature vibration shakers, our dual purpose 2075E Vibration Shakers and 2110E Vibration Shakers have both a through-hole armature and a mounting platform to simplify your testing.
