Simplify accelerometer installation with a variety of tools for mounting accelerometers, mating cables, and testing accelerometer cables.
Select cable adaptors that mates the selected cable to additional cabling or equipment.
Scope input adaptor, 10‑32 jack to BNC plug
Connector adaptor, 10‑32 plug to BNC jack
Cable feed-thru connector, 10‑32 jack to 10‑32 jack
Cable adaptor, 10‑32 jack to BNC jack
BNC ‘T’ connector, 2 BNC jacks, 1 BNC plug
Coupler, BNC jack to BNC jack
Portable Cable Tester; BNC Connections, 10‑32 Connections, 5‑44 Connections.
Test any 2‑conductor cable for faults or opens, and identify issues to inner or outer conductor or shorts. Includes BNC, 10‑32 and 5‑44 connectors for each cable end; other adaptors can be used.
! Use caution when using magnetic bases, as the installation force can cause excessive shock and damage the sensor. Install the magnet base on the edge and "roll" the assembly gently into position, or install the magnet base to the test object first and then attach the sensor.
High strength, rare earth magnetic base, 0.375” hex, 0.23" thick, 2.5 lbf, 5‑40 tapped hole
View Specifications
High strength, rare earth magnetic base 0.75” hex, 0.27" thick, with 10‑32 thread, 12 lbf
View Specifications
Magnetic base, 1" dia., 0.75" thick, 6 lbf, with 10‑32 tapped hole

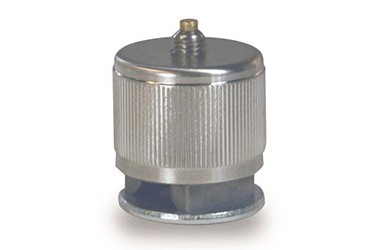

Curved surface magnet, 0.75” dia., 0.72" height, 15 lbf, SS knurled case, 1/4‑28 tapped hole (stud ordered separately)
View Specifications
Curved surface magnet, 1.0” dia., 1.02" height, 35 lbf, SS knurled case, 1/4‑28 tapped hole (stud ordered separately)
View Specifications
Curved surface magnet, 1.5” dia., 1.25" height, 55 lbf, SS knurled case, 1/4‑28 tapped hole (stud ordered separately)
View Specifications
Hardcoated aluminum ground isolating adhesive mounting bases.
10‑32 thread, 0.187” thick, 1/2” hex
5‑40 thread, 0.125” thick, 5/16” hex
5‑40 thread, 0.125” thick, 7/16” hex
1/4‑28 thread, 0.2” thick, 3/4” hex
10‑32 thread, 0.2” thick, 3/4” hex
10‑32 thread, 0.2” thick, 7/8” hex
Rental accelerometers include mounting studs as noted on related accelerometer pages. If necessary, select additional mounting studs, adaptor studs, or adaptor plates.
5‑40 to 5‑40
10‑32 to 10‑32 with shoulder
1/4‑28 to 1/4‑28 with shoulder
5‑40 to 10‑32
10‑32 to 1/4‑28
10‑32 to 5-40
5‑40f to 1/4‑28m
10‑32f to 1/4‑28m
adhesive to 1/4‑28m
Select mounting equipment that mates the selected sensor to the test subject. Where applicable, adhesive bases are included with each sensor rental.
Triaxial mounting adaptor, 0.37” cube, aluminum, for 5‑40 mount sensors, mount adaptor via 10‑32 tap
View Specifications
Triaxial mounting adaptor, 1.5” cube, stainless steel, for 1/4‑28 mount sensors, mount adaptor via 10‑32 tap
View Specifications
Triaxial mounting adaptor, 1.23” cube, aluminum, for 10‑32 mount sensors, mount adaptor via 10‑32 tap
Select additional mounting and removal tools.
Avoid sensor damage by using tool and applying shear force, see video. One removal tool is supplied for each model of applicable sensor rented, contact us if additional removal tools are required.
Petro wax provides a simple mounting method for many applications meeting all of the following conditions:
One square is 1”x1”x0.25”
Quick Bond Gel. Cyanoacrylate-based mounting methods offer an ideal mounting method for lightweight accelerometers (under 20 grams). A fast room temperature cure time coupled with both wide useable frequency and temperature ranges makes this option very popular. Be sure to use a debonder such as acetone and wait a few minutes before removing the sensor.
