Sensor Power and Signal Conditioner Rental
For Small Channel Count Testing
Model | Channel Count | Gain | Low Freq. Response (-5%) | High Freq. Response (±5%) | Broadband Noise (μVrms) | Power | Input Connecters | Output Connecters |
---|
480E09 | 1 | x1 x10 x100 | 0.15Hz | 100kHz | 3.25 | (3)9V 50hr | BNC | BNC |
480C02 | 1 | x1 | 0.05Hz | 500kHz | 3.25 | (3)9V 36hr | BNC | BNC |
485B36 | 2 | x1 | 1Hz | 50kHz | 12 | USB | BNC | 3.5mm stereo |
480B21 | 3 | x1 x10 x100 | 0.15Hz | 100kHz | 3.54 | (3)9V 25hr | BNC | BNC |
482A22 | 4 | x1 | 0.1Hz | 1MHz | 3.25 | AC | BNC | BNC |
482A20 | 8 | x1 x10 x100 | 0.225Hz | 50kHz | 10 | AC | BNC | BNC |
482C05 | 4 | x1 | <0.1Hz | >1000kHz | 3.5 | AC | BNC | BNC |
482C27 | 4 | .1 to 200 (ICP/Voltage) .1 to 2000 (Bridge/Differential) | 0.05Hz | 50kHz | See Full Specs | AC | BNC | 8-pin mini DIN/BNC |
481A01 | 16 | x1 | 0.5Hz | 100kHz | 11 | AC | BNC and DB 50‑pin | BNC |
481A02 | 16 | x1 x10 x100 | 0.5Hz | 100kHz | 11 | AC | BNC and DB 50‑pin | BNC |
440 Series Kits | 16‑512+ | x1 x10 x100 | 0.05Hz | 50kHz | 100 | AC or DC | BNC | BNC |

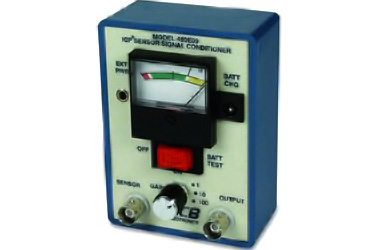

480E09
Key Specifications
Rental Includes
- Batteries - three 9 volt batteries for approximately 50 hours of operation
480C02
Key Specifications
Rental Includes
- Batteries - three 9 volt batteries for approximately 50 hours of operation

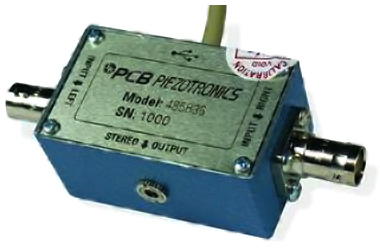

485B36
Key Specifications
Rental Includes
- 009M130 - Output cable. 3.5mm stereo jack to 3.5mm stereo jack, 1ft long
- 009M131 - Output cable. 3.5mm stereo jack to 2 RCA phono plugs with BNC adaptors, 3ft long

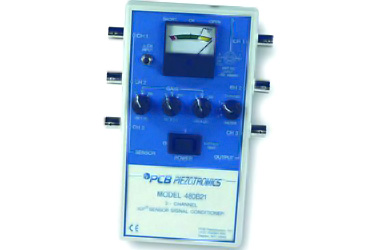

480B21
Key Specifications
- 3 channel
- 9V battery powered (user replaceable)
- x1, x10, x100 gain settings
- BNC I/O and 1/4-48 4-pin input (for triaxial accelerometers) electrical connectors
- Full specs from manufacturer
Rental Includes
- Batteries - three 9 volt batteries for approximately 25-40 hours of operation

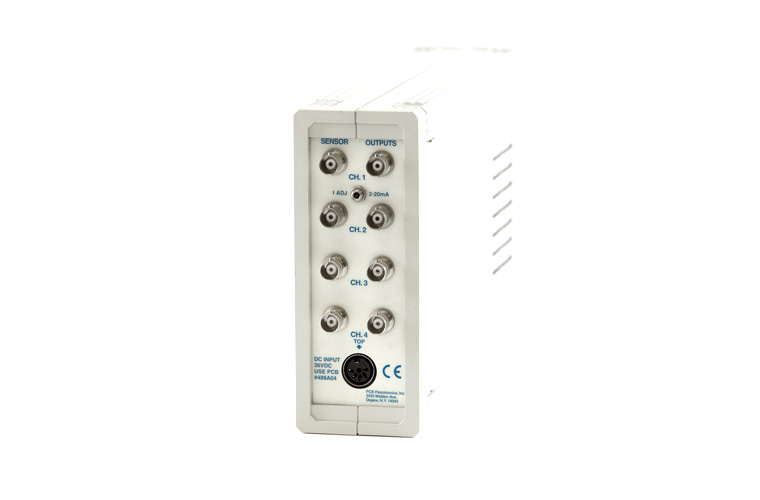

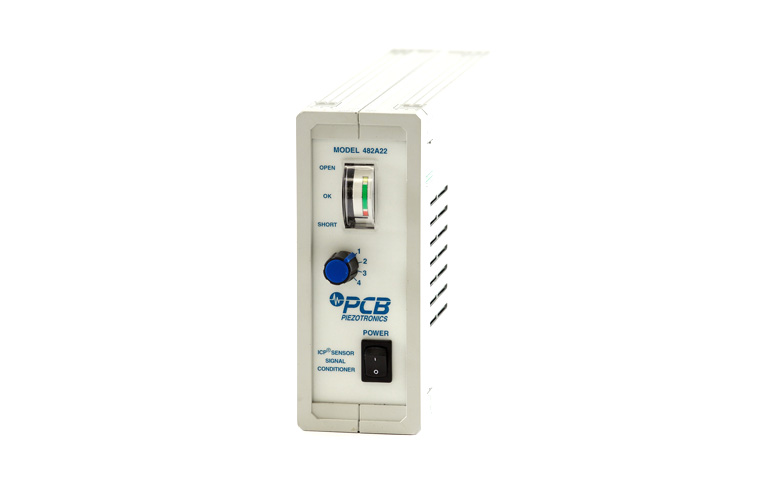

482A22
Key Specifications
Rental Includes
- 017Axx - Power cord
- 488B04/NC - Power converter

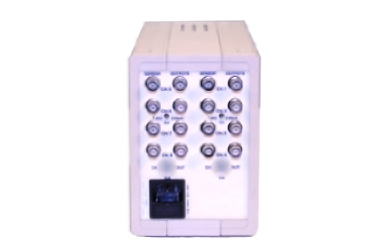

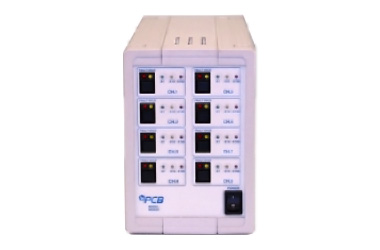

482A20
Key Specifications
Rental Includes
- 017Axx - Power cord
- 488B04/NC - Power converter

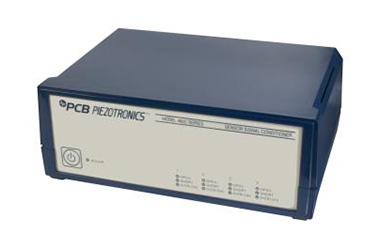

482C05
Key Specifications
Rental Includes
- 017Axx - Power cord
- 488B04/NC - Power converter

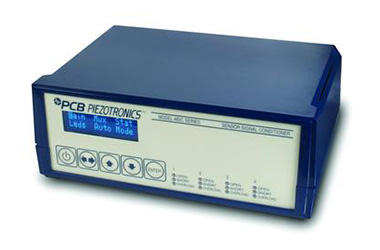

482C27
Key Specifications
- 4 channel
- Line powered
- ICP/Voltage Mode Gain of x0.1 to x200
- Bridge/Differential Mode of x0.1 to x2000
- BNC I/O and 8-socket mini DIN electrical connectors
- Full specs from manufacturer
Rental Includes
- 017Axx - Power cord
- 100-7103-50 - Multi-conductor cable, 6-ft, 9-pin female to 9-pin male
- 488B14/NC - Power converter
- EE75 - PCB MCSC Control Software

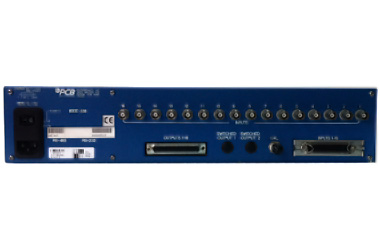

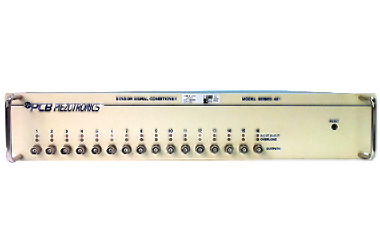

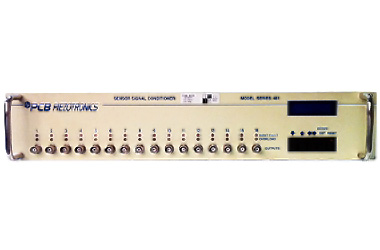

481A01
Key Specifications
Highlights
- Open/short/overload LED indicators on front for each channel. Can use DB 50-pin to interface with 070C29 patch panel via 009H style cable.
Rental Includes

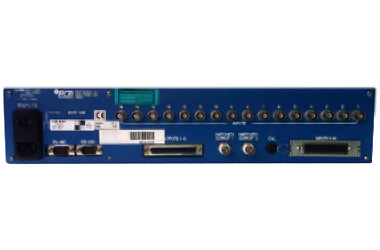

481A02
Key Specifications
Highlights
- Open/short/overload LED indicators on front for each channel. Can use DB 50-pin to interface with 070C29 patch panel via 009H style cable.
Rental Includes

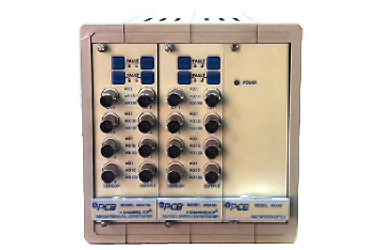

440 Series Kits
The 440 Series of modular signal conditioners is a flexible, compact signal conditioning solution. Up to 32 channels of signal conditioning can be placed in a single standard rack. Add 442A104 or 442B104 cards to provide signal conditioning for as many channels as required.
Key Specifications
- Modular system
- 4, 8, 12, 16, 20, 24, 28, or 32 channel
- Line or DC power
- x1, x10, x100 gain settings
- BNC I/O electrical connectors
- Please contact The Modal Shop for ordering information
- Full specs from manufacturer
Example Rental Includes
- K440-4BNC - Provides 4 channel ICP. Includes 441A33 3-slot shassis, 441A101 110-240V AC power supply, and one 442A104 four channel card. BNC inputs and outputs with x1, x10, x100 gain selectable per channel.
